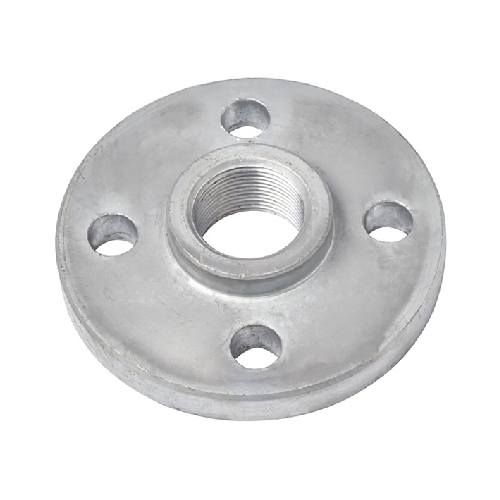

DN40 (1.1/2" NB) ASA300 1.1/2" NPT GALVANISED THREADED FLANGE CS A105N

DN40 (1.1/2" NB) ASA300 1.1/2" NPT GALVANISED THREADED FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-40-FF-SCR-300-A105N-GAL
Size (Inch)
1.1/2"
Outside Diameter (mm)
48.30mm
Weight
2.8 KG
https://www.processflow.co.uk/web/image/product.template/15536/image_1920?unique=2fe353f

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 2.80 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 155.4mm
Hub diameter at base (C): 20.5mm
Length through hub (X): 69.8mm
Pitch circle diameter (K): 114.3mm
Raised face diameter (Y): 30.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 73.1mm
Bore diameter (Q): 50.5mm
Hub thickness (T): 22.3mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/2"
Outside Diameter (mm) 48.30mm
