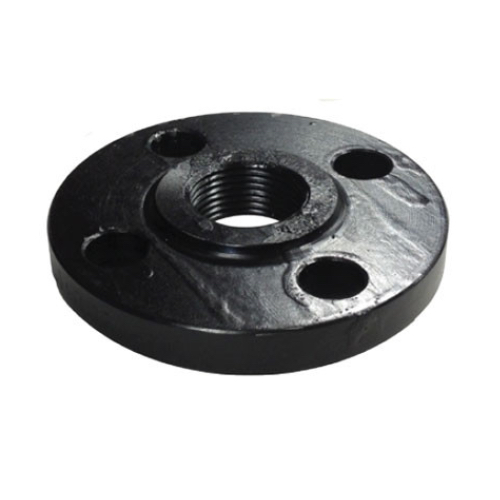

DN40 (1 1/2" NB) PN10/PN16/PN25/PN40 RF BSPP THREADED FLANGE S235JR BLACK

DN40 (1 1/2" NB) PN10/PN16/PN25/PN40 RF BSPP THREADED FLANGE S235JR BLACK

Technical Specification
Product Code
CS-NB-FLA-40-RF-SCR-P10-P16-P25-P40-S235JR-BLK
Size (Inch)
1/2"
Outside Diameter (mm)
48.30mm
Weight
2.06 KG
https://www.processflow.co.uk/web/image/product.template/15207/image_1920?unique=9f8b7da

£ 13.92 13.92 GBP £ 13.92 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 2.06 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 150mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 110mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 1 1/2"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16
