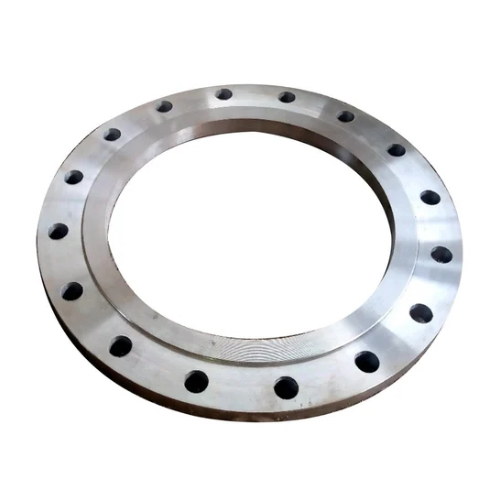

DN400 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Technical Specification
Product Code
CS-NB-FLA-400-RF-SO-P10-S235JR
Outside Diameter (mm)
406.40mm
Weight
27.5 KG
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 565mm (D)
PCD: 515mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
