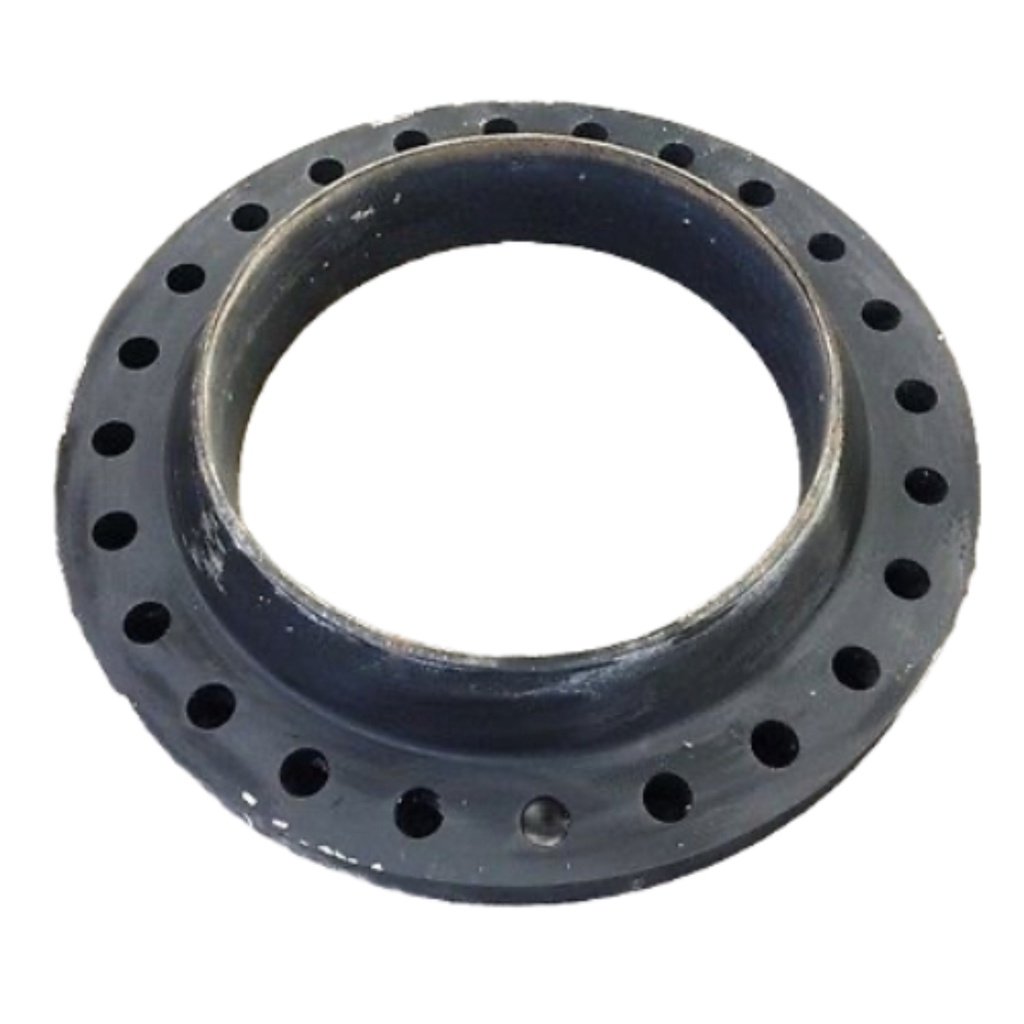

DN400 (16" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

Name: DN400 (16" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N
SKU: CS-NB-FLA-400-RF-WN-S40-300-A105N
Availability: InStock

Outside diameter (O): 647.7mm

Flange thickness (C): 57.1mm

Hub height (X): 482.6mm

Length through hub (A): 406.4mm

Bolt circle diameter (K): 476.3mm

Overall height (Y): 146.0mm

Raised face thickness (RF): 1.5mm

Bore (B): 469.9mm

Number of bolt holes: 20

Bolt hole diameter: 35.0mm

Approx. weight: 113.0kg
