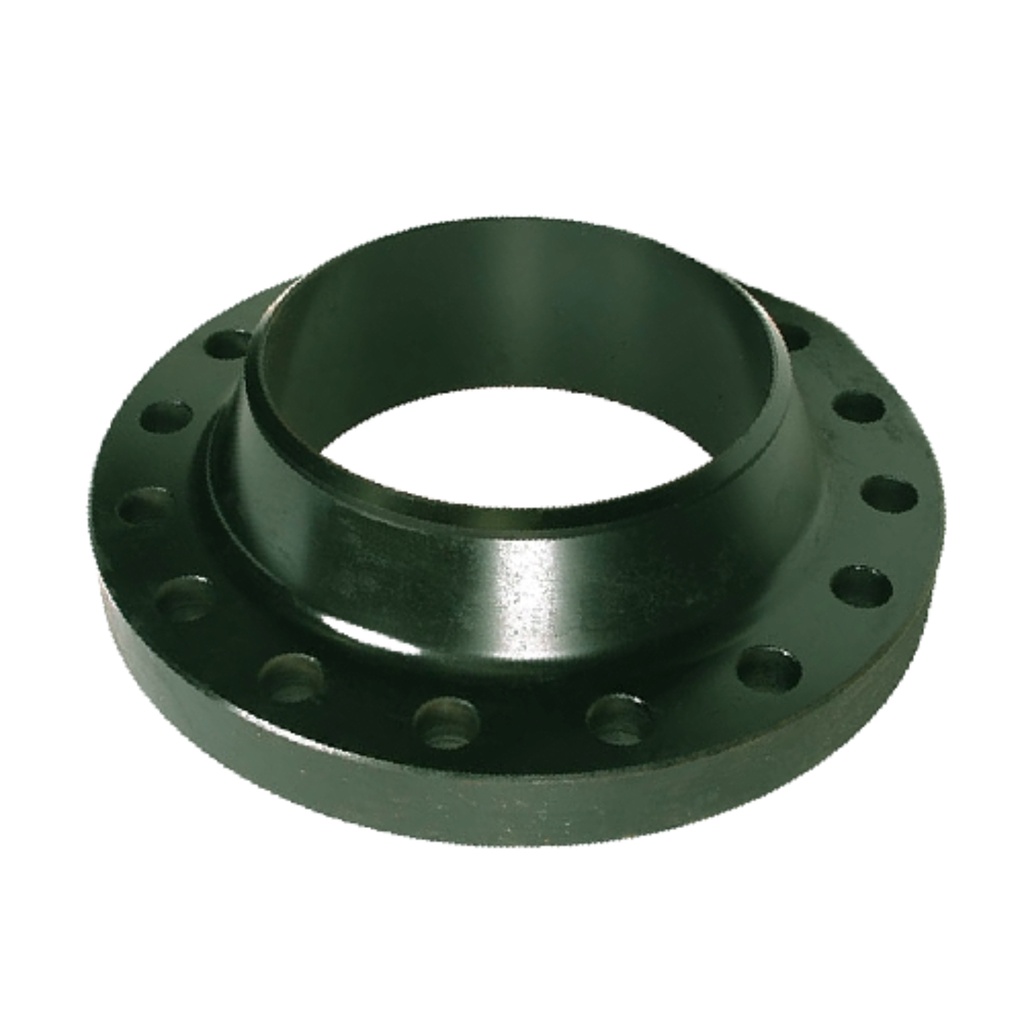

DN400 (16" NB) SCHEDULE STD WT ASA150 WELD NECK FLANGE CS A105N

DN400 (16" NB) SCHEDULE STD WT ASA150 WELD NECK FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-400-RF-WN-STD-A150-A105N
Size (Inch)
16"
Outside Diameter (mm)
406.40mm
Weight
145.0 KG
https://www.processflow.co.uk/web/image/product.template/15776/image_1920?unique=7f6b2af

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 145.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Hub length (X): 457.2mm
Neck height (A): 393.7mm
Pitch circle diameter (K): 539.7mm
Hub base diameter (Y): 139.7mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 16"
Outside Diameter (mm) 406.40mm
