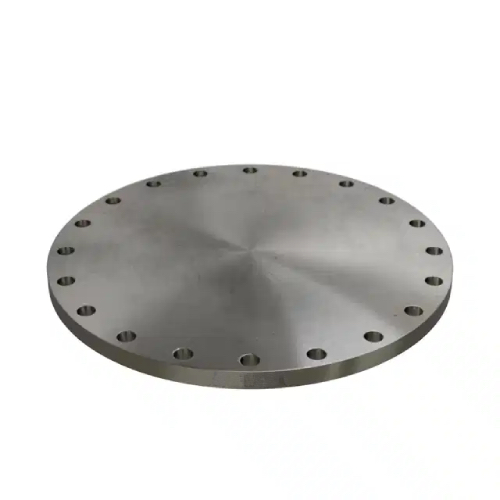

DN450 (18" NB) PN16 FF BLIND FLANGE CS S235 JR

DN450 (18" NB) PN16 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-450-FF-BLA-P16-S235JR
Size (Inch)
18"
Outside Diameter (mm)
457.00mm
Weight
46.1 KG
https://www.processflow.co.uk/web/image/product.template/15377/image_1920?unique=9f8b7da

£ 421.20 421.2 GBP £ 421.20 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 46.10 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 640mm
Drilling (No. x Bolt Hole x L): 20 x M27 x 30mm
Pitch circle diameter (K): 585mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 520mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Product Code: CS-NB-FLA-450-FF-BLA-P16-S235JR


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 18"
Outside Diameter (mm) 457.00mm
