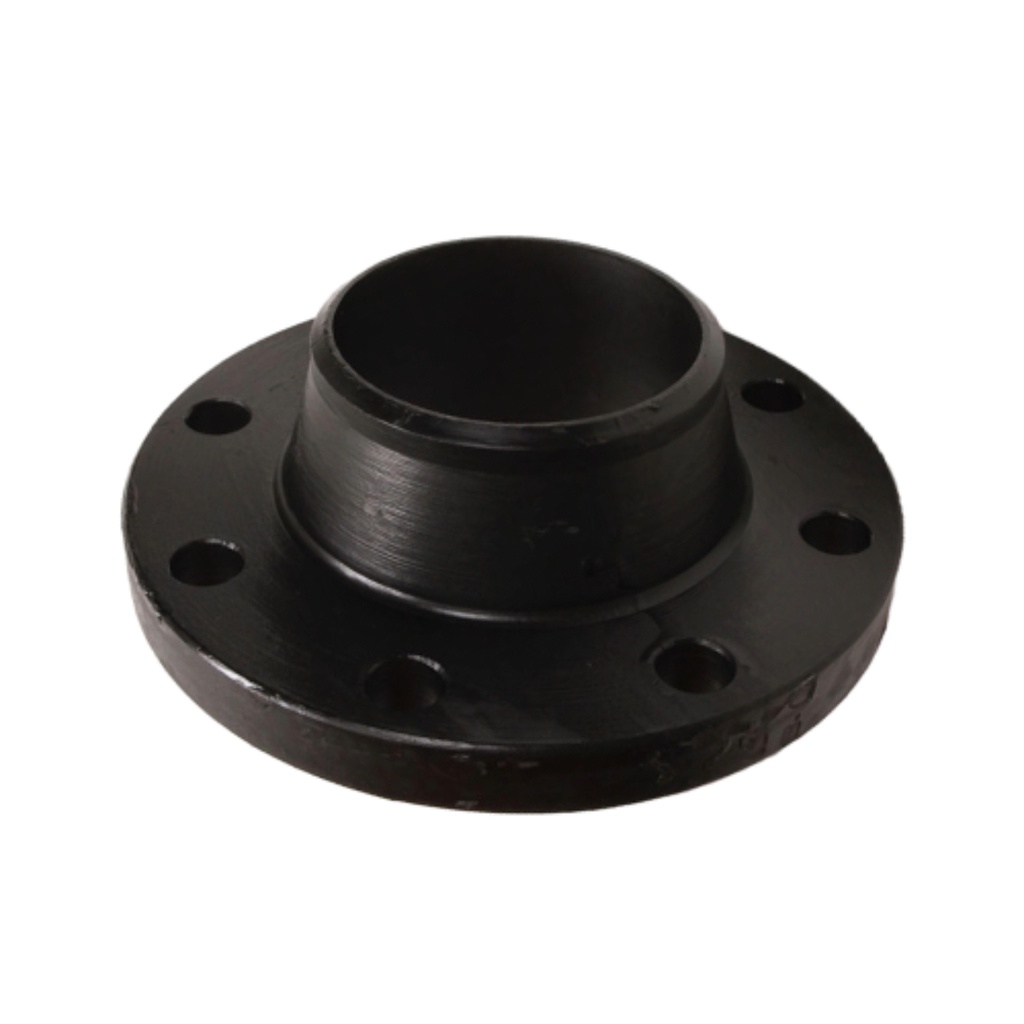

DN50 (2 NB) SCHEDULE 40 ASA150 WELD NECK FLANGE A105N

Name: DN50 (2 NB) SCHEDULE 40 ASA150 WELD NECK FLANGE A105N
SKU: CS-NB-FLA-50-RF-WN-S40-150-A105N
Availability: InStock

Outside diameter (O): 152.4mm

Flange thickness (C): 19mm

Hub height (X): 77.7mm

Length through hub (A): 60.4mm

Bolt circle diameter (K): 120.6mm

Overall height (Y): 63.5mm

Raised face thickness (RF): 1.5mm

Number of bolt holes: 4

Bolt hole diameter: 19.0mm

Approx. weight: 2.7kg

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Outside Diameter (mm)

60.30mm
