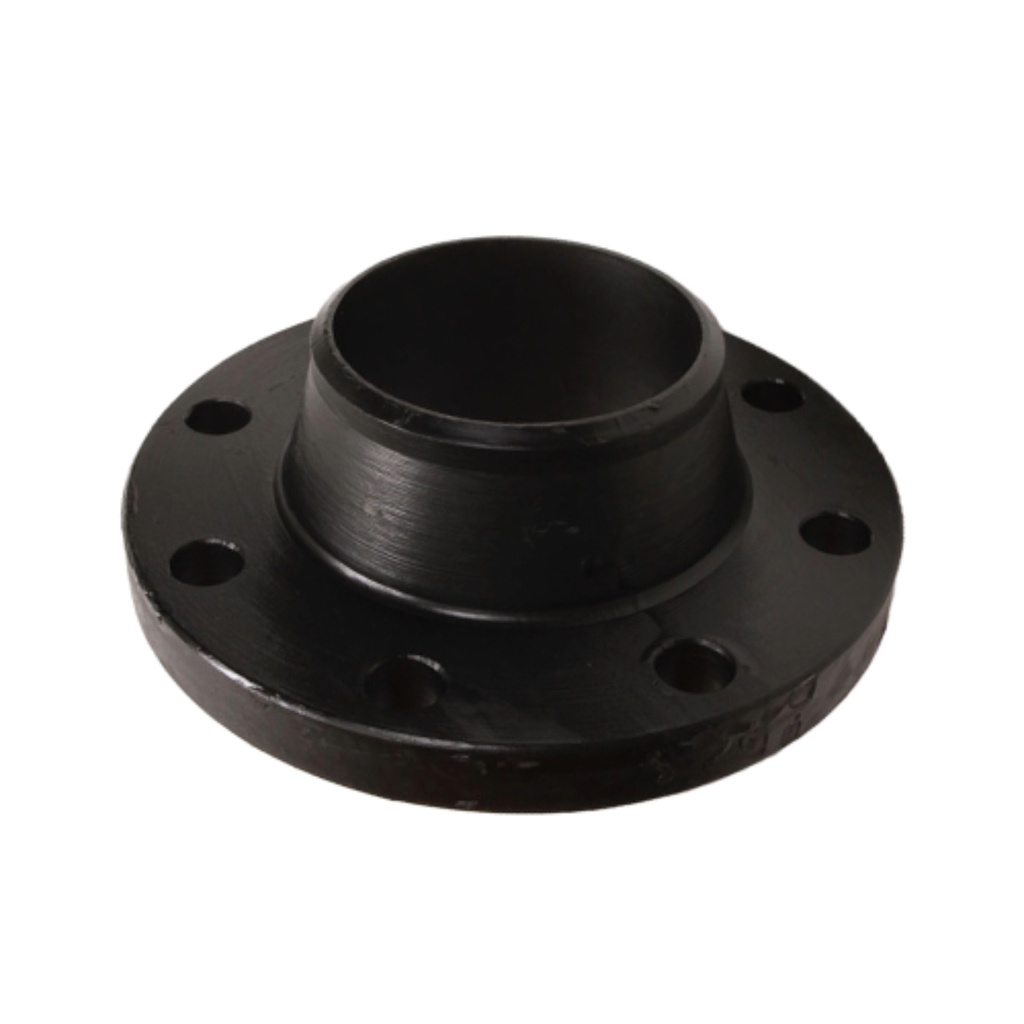

DN50 (2 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

DN50 (2 NB) SCHEDULE 80 ASA300 WELD NECK FLANGE A105N

Technical Specification
Product Code
CS-NB-FLA-50-RF-WN-S80-300-A105N
Outside Diameter (mm)
60.30mm
Weight
4.0 KG
https://www.processflow.co.uk/web/image/product.template/15867/image_1920?unique=9f8b7da

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 4.00 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg
Product Code: CS-NB-FLA-50-RF-WN-S80-300-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Outside Diameter (mm) 60.30mm
