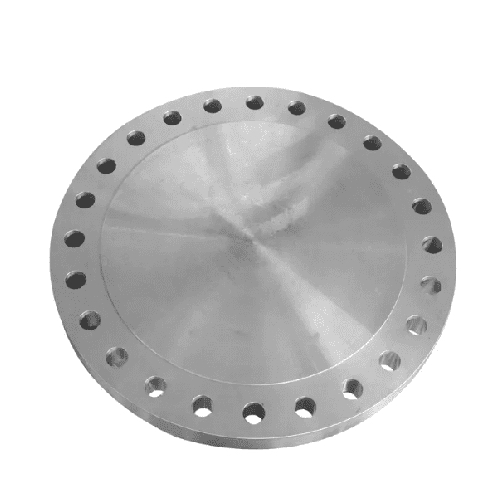

DN500 (20" NB) JIS B222O 5K RF BLIND FLANGE CS A105N

DN500 (20" NB) JIS B222O 5K RF BLIND FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-500-5K-A105
Size (Inch)
20"
Outside Diameter (mm)
508.00mm
Weight
110.0 KG
https://www.processflow.co.uk/web/image/product.template/21990/image_1920?unique=1ec7b52

£ 2,480.40 2480.4 GBP £ 2,480.40 Tax Excluded

Not Available For Sale

(£ 2,480.40 / each)
Product details
Weight 110.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Suits an outside diameter (OD) of: 508.00mm
Material: Carbon Steel
Grade: A105 N
Standards: JIS B2220 5K
Flange Face: Raised
Raised Face Diameter: 573.00mm
Bolt Holes: 20 off to suit 25.00mm Diameter
PCD: 605.00mm
Flange Diameter: 655.00mm
Flange Thickness: 24.00mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Raised Face, RFB, Blanking, Termination Flange, Mild Steel, Carbon Steel
Product Code: CS-NB-FLA-500-5K-A105


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 20"
Outside Diameter (mm) 508.00mm
