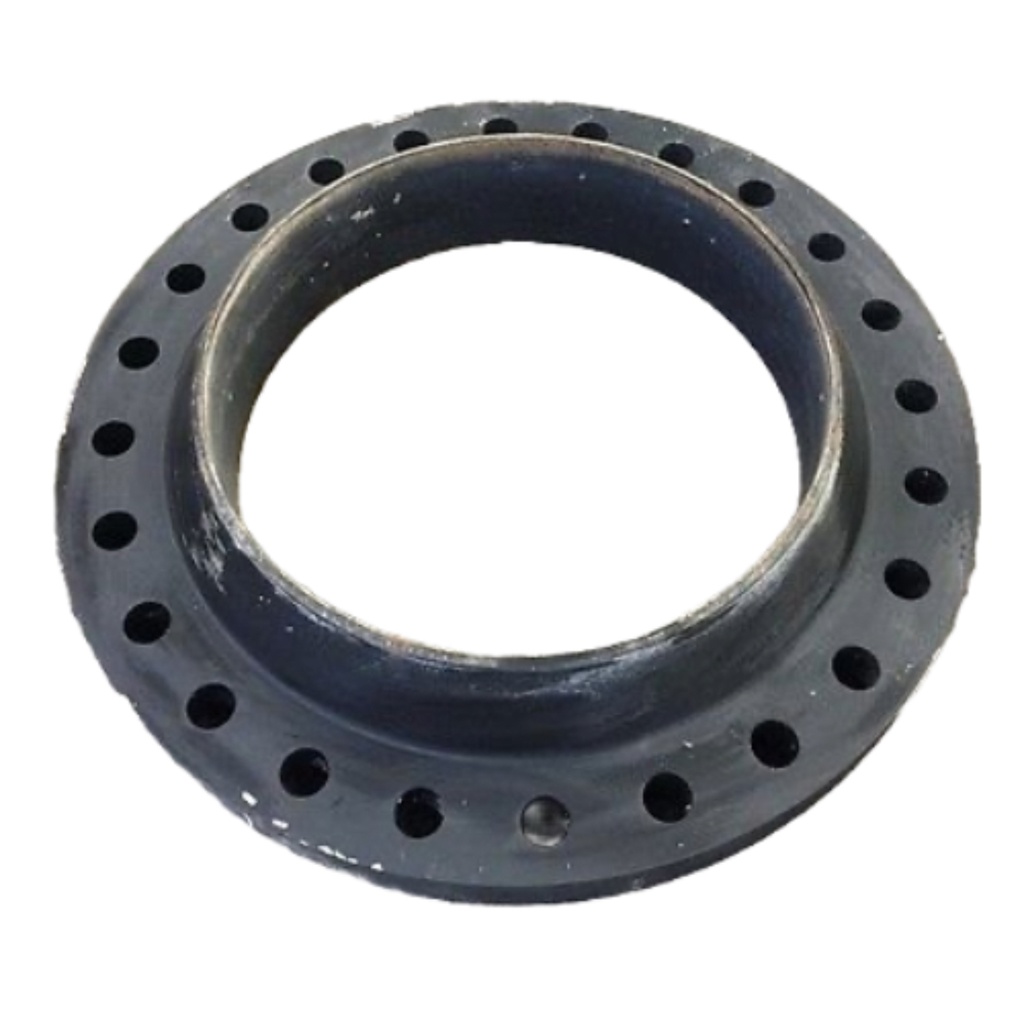

DN500 (20" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

DN500 (20" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

Technical Specification
Product Code
CS-NB-FLA-500-RF-WN-S40-300-A105N
Size (Inch)
20"
Outside Diameter (mm)
508.00mm
Weight
171.0 KG
https://www.processflow.co.uk/web/image/product.template/15841/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 171.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Hub height (X): 587.2mm
Length through hub (A): 508.0mm
Bolt circle diameter (K): 520.7mm
Overall height (Y): 162.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 584.2mm
Number of bolt holes: 24
Bolt hole diameter: 35.0mm
Approx. weight: 171.0kg
Product Code: CS-NB-FLA-500-RF-WN-S40-300-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 20"
Outside Diameter (mm) 508.00mm
