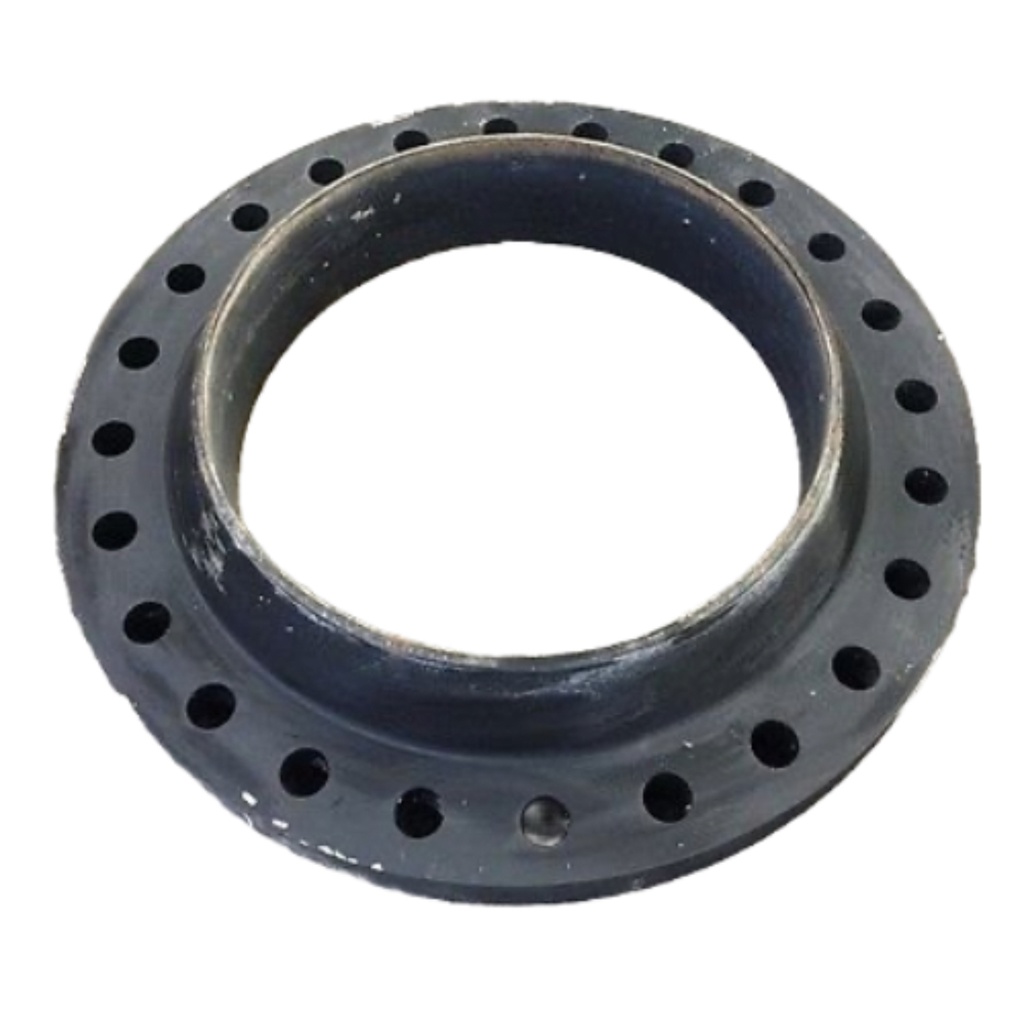

DN500 (20" NB) STD WT PN16 RF WELD NECK FLANGE A105N

Name: DN500 (20" NB) STD WT PN16 RF WELD NECK FLANGE A105N
SKU: CS-NB-FLA-500-RF-WN-STD-P16-A105N
Price: 1014.0 GBP
Availability: InStock

Outside diameter (O): 715mm
Flange thickness (C): 36mm
Weld neck Dia: 508mm
Bolt circle diameter (K): 650mm
Overall height (Y): 84mm
Number of bolt holes: 20x m30
Bolt hole diameter: 33.0mm
Approx. weight: 63.40kg

Part of our Flanges and Flanged Connections Range

Availability: Call for prices

Call for prices

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Grade	A105N
Outside Diameter (mm)	508.00mm
Nominal Size	DN500
Schedule	STD
Pressure Rating	PN16
Flange Face	Raised face (RF)
