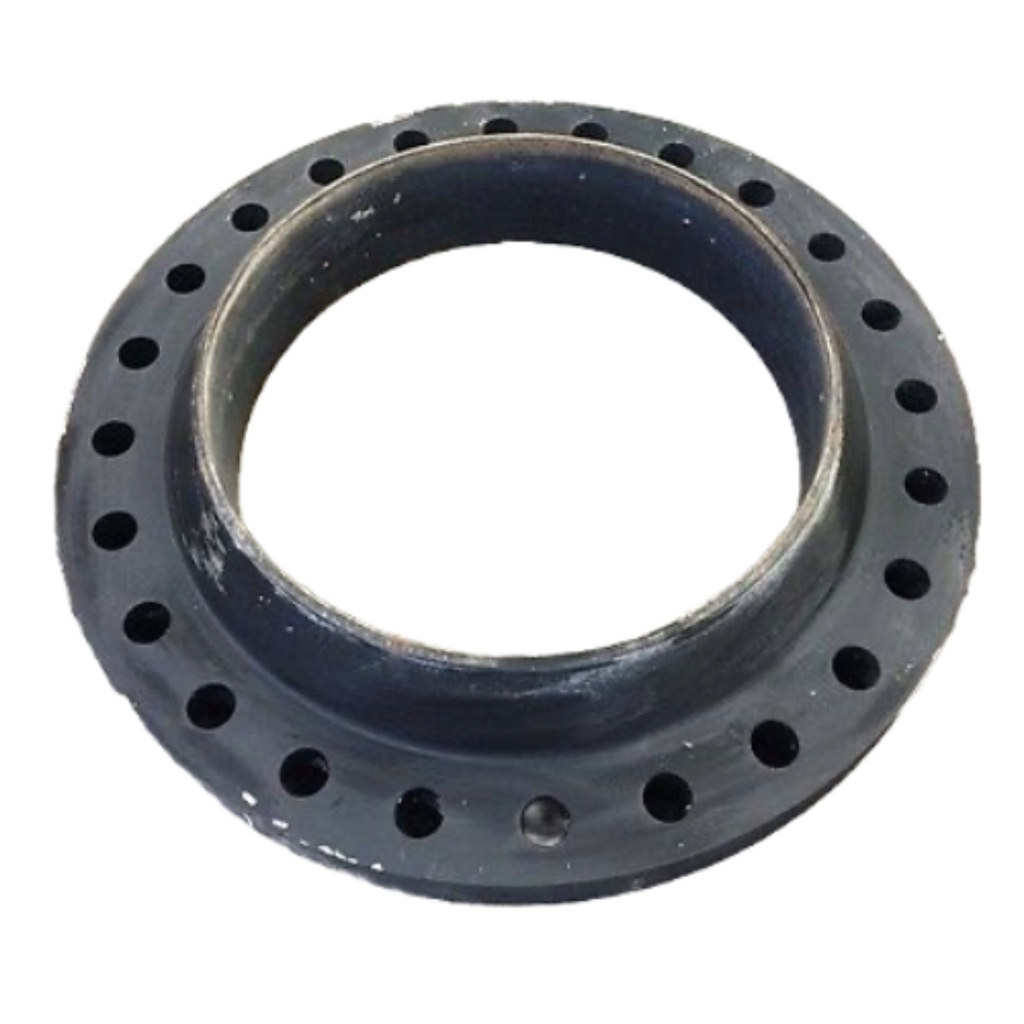

DN600 ASA150 SCHEDULE XS WELD NECK FLANGE CS A105N

DN600 ASA150 SCHEDULE XS WELD NECK FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-600-RF-WN-XS-A150-A105N
Outside Diameter (mm)
609.60mm
Weight
390.0 KG
https://www.processflow.co.uk/web/image/product.template/15795/image_1920?unique=292fe87

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 390.00 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Hub length (X): 663.4mm
Neck height (A): 609.6mm
Pitch circle diameter (K): 749.3mm
Hub base diameter (Y): 152.4mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF
