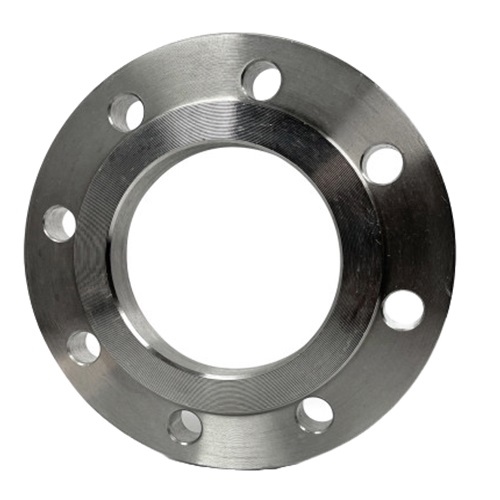

DN65 (2.1/2" NB) PN16 (8 HOLE) RF SLIP ON PLATE FLANGE CS S235 JR

DN65 (2.1/2" NB) PN16 (8 HOLE) RF SLIP ON PLATE FLANGE CS S235 JR

Flanges
Technical Specification
Product Code
CS-NB-FLA-65-76-RF-SO-P16-S235JR
Size (Inch)
2 1/2"
Outside Diameter (mm)
73.00mm
Weight
3.16 KG
https://www.processflow.co.uk/web/image/product.template/11140/image_1920?unique=1ec7b52

£ 12.69 12.69 GBP £ 12.69 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 3.16 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flanges

Suits an outside diameter (OD) of: 73/76.2mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 20mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Mild Steel, Carbon Steel

Product Code: CS-NB-FLA-65-76-RF-SO-P16-S235JR


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 2 1/2"
Outside Diameter (mm) 73.00mm
