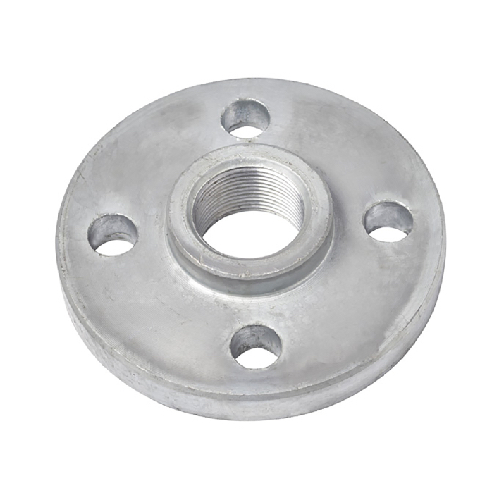

DN65 (2 1/2" NB) PN16 RF BSPP THREADED FLANGE S235JR GALVANISED

DN65 (2 1/2" NB) PN16 RF BSPP THREADED FLANGE S235JR GALVANISED

Technical Specification
Product Code
CS-NB-FLA-65-RF-SCR-P16-S235JR-GAL
Size (Inch)
1/2"
Outside Diameter (mm)
73.00mm
Weight
2.97 KG
https://www.processflow.co.uk/web/image/product.template/15212/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 2.97 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 185mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 145mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2 1/2"
Bolt Holes: 4 OR 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Product Code: CS-NB-FLA-65-RF-SCR-P16-S235JR-GAL
