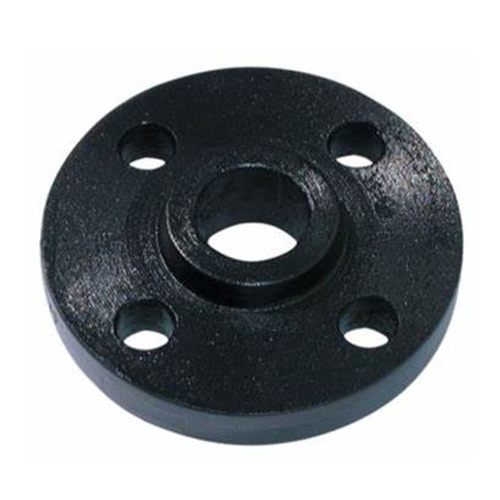

DN65 (2.1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N

DN65 (2.1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N

Flange outside diameter: 177.8mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 28.4mm (Y)
Pitch Circle Diameter (PCD): 139.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 74.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Material Carbon Steel
Grade A105N
Outside Diameter (mm) 73.00mm
Nominal Size DN65
Pressure Rating Class 150
Flange Face Raised face (RF)
