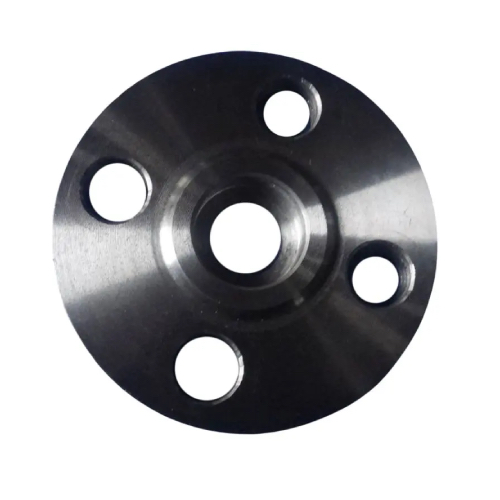

DN65 (2.1/2" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

DN65 (2.1/2" NB) ASA150 RF SOCKET WELD FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-65-RF-SW-150-A105N
Size (Inch)
2 1/2"
Outside Diameter (mm)
73.00mm
Weight
3.6 KG
https://www.processflow.co.uk/web/image/product.template/15557/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 3.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 177.8mm
Hub diameter at base (C): 22.3mm
Length through hub (X): 90.4mm
Pitch circle diameter (K): 139.7mm
Raised face diameter (Y): 28.4mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 104.6mm
Bore length (B): 74.6mm
Bore diameter (D): 19.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced
Product Code: CS-NB-FLA-65-RF-SW-150-A105N


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 2 1/2"
Outside Diameter (mm) 73.00mm
