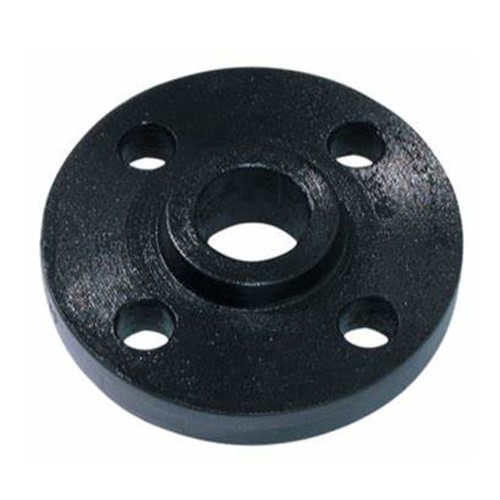

DN80 (3" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N

DN80 (3" NB) ASA150 RF BOSSED SLIP ON FLANGE CS A105N

Technical Specification
Product Code
CS-NB-FLA-80-RF-SOB-ASA150-A105N
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Weight
4.1 KG
https://www.processflow.co.uk/web/image/product.template/15104/image_1920?unique=d4da88c

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 4.10 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 190.5mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 152.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 90.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 3"
Outside Diameter (mm) 88.90mm
