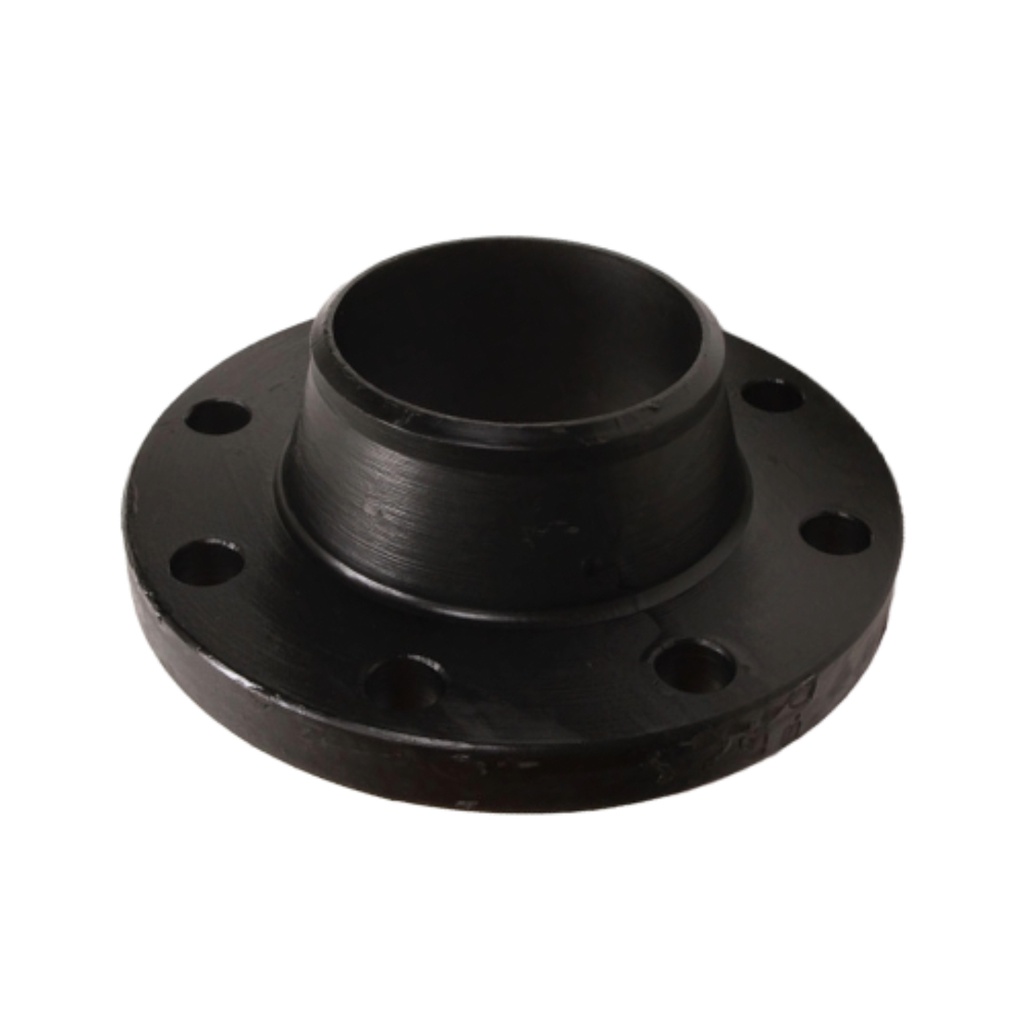

DN80 (3" NB) SCHEDULE 40 ASA150 WELD NECK FLANGE A105N

DN80 (3" NB) SCHEDULE 40 ASA150 WELD NECK FLANGE A105N

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub height (X): 107.9mm
Bolt circle diameter (K): 152.4mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Number of bolt holes: 4
Bolt hole diameter: 19mm
Approx. weight: 5.2kg

Part of our Flanges and Flanged Connections Range
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Schedule
  • Pressure Rating

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Grade A105N
Outside Diameter (mm) 88.90mm
Nominal Size DN80
Schedule Schedule 40
Pressure Rating Class 150
