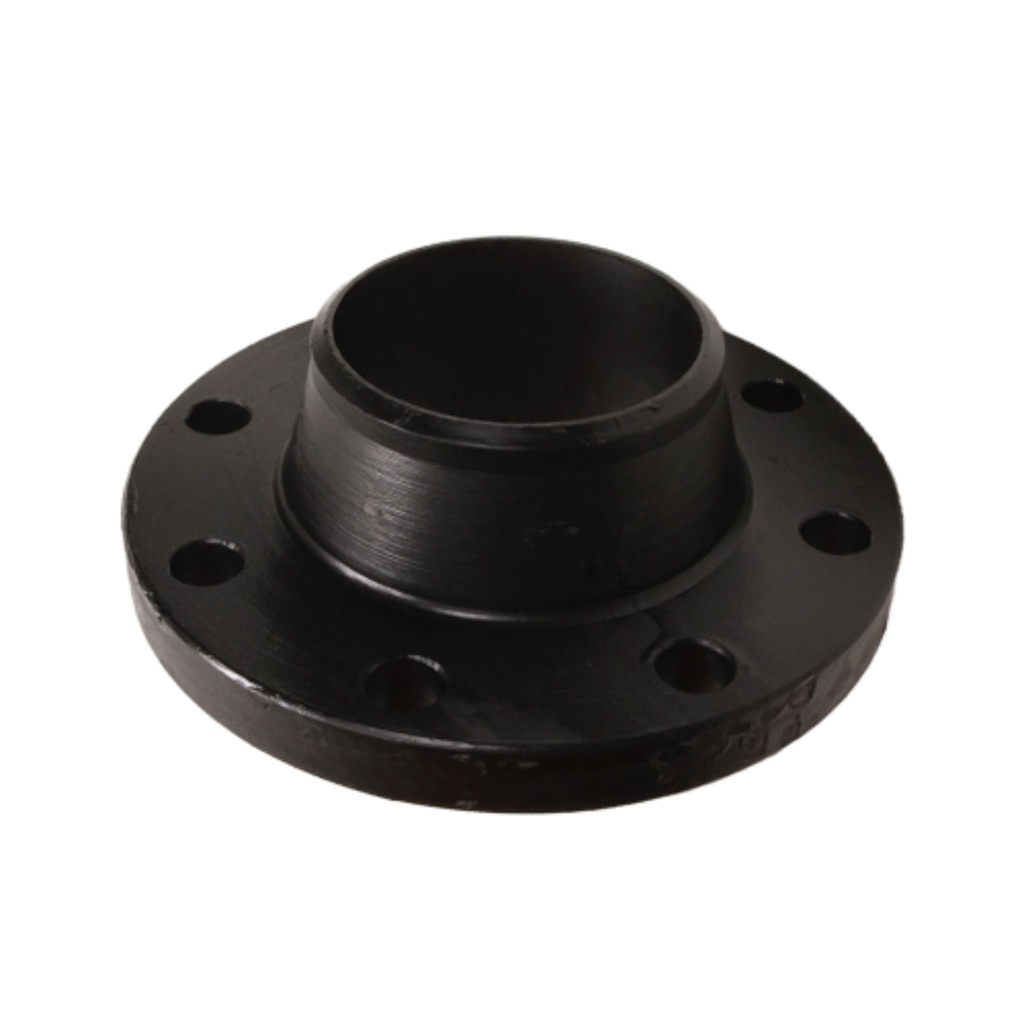

DN80 (3" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N

Name: DN80 (3" NB) SCHEDULE 40 ASA300 WELD NECK FLANGE A105N
SKU: CS-NB-FLA-80-RF-WN-S40-300-A105N
Availability: InStock

Outside diameter (O): 209.5mm

Flange thickness (C): 28.4mm

Hub height (X): 117.3mm

Length through hub (A): 88.9mm

Bolt circle diameter (K): 168.1mm

Overall height (Y): 79.2mm

Raised face thickness (RF): 1.5mm

Bore (B): 127.0mm

Number of bolt holes: 8

Bolt hole diameter: 22.3mm

Approx. weight: 7.4kg

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Outside Diameter (mm)

88.90mm
