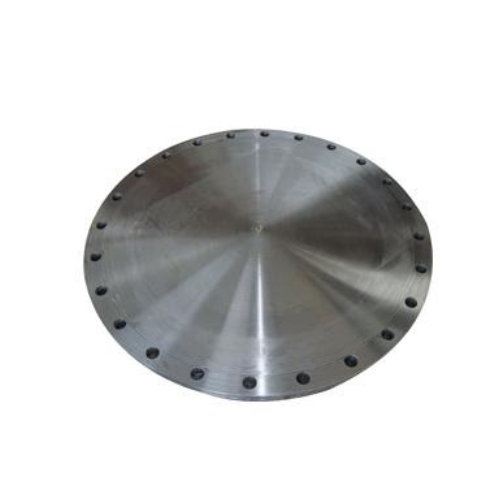

DN800 (32" NB) PN16 FF BLIND FLANGE CS S235 JR

DN800 (32" NB) PN16 FF BLIND FLANGE CS S235 JR

Technical Specification
Product Code
CS-NB-FLA-800-FF-BLA-P16-S235JR
Size (Inch)
32"
Outside Diameter (mm)
812.80mm
Weight
143.02 KG
https://www.processflow.co.uk/web/image/product.template/15381/image_1920?unique=0e5ce58

£ 1,716.00 1716.0 GBP £ 1,716.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 143.02 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 1025mm
Drilling (No. x Bolt Hole x L): 24 x M36 x 39mm
Pitch circle diameter (K): 950mm
Flange thickness (C1): 74mm
Raised face diameter (D1): 880mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 32"
Outside Diameter (mm) 812.80mm
