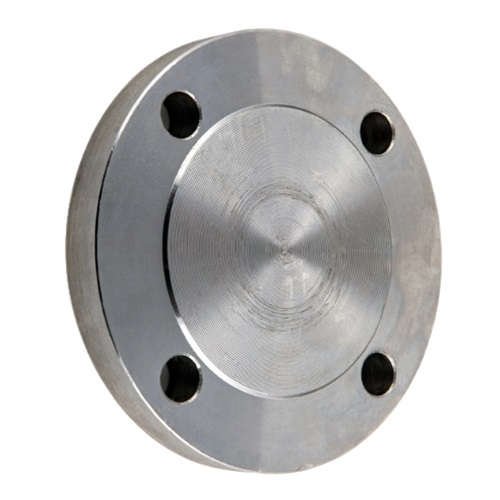

DN40 (1.1/2" NB) ASA150 RF BLANK FLANGE CS A105N (EUROPEAN ORIGIN)
Flanges
Technical Specification
Product Code
CS-NB-FLA-RF-BLA-A150-40-A105N-EU
Size (Inch)
1.1/2"
Outside Diameter (mm)
48.30mm
Weight
2.6 KG
Blanking / Blind Flange
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 4 off 16mm Ø
PCD: 98.4mm
Flange Diameter: 127mm
Flange Thickness: 19mm
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)
Alternative terminology:
Blind, Blank, Blanking Flange, Mild steel, Carbon Steel, Termination, RFB
