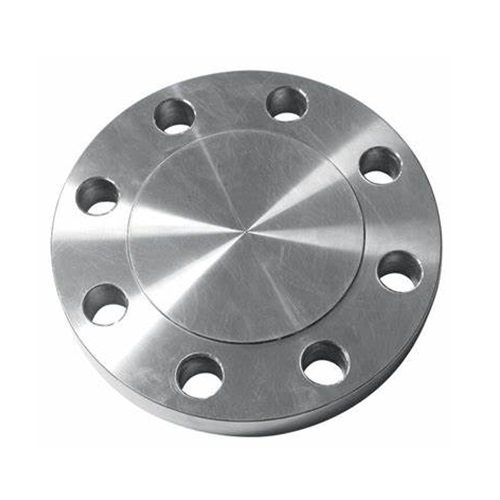

DN100 (4" NB) ASA600 RF BLANK FLANGE CS A105N
Flanges
Technical Specification
Product Code
CS-NB-FLA-RF-BLA-A600-100-A105N
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
18.0 KG
Blanking / Blind Flange
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.9 / ASA600
Flange Face: Raised
Bolt Holes: 8 off 25.4mm Ø
PCD: 215.9mm
Flange Diameter: 273mm
Flange Thickness: 38.1mm
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Blind, Blank, ANSI, ASM, ASA, Class 600, Blanking Flange, Mild steel, Carbon Steel, Termination, RFB
