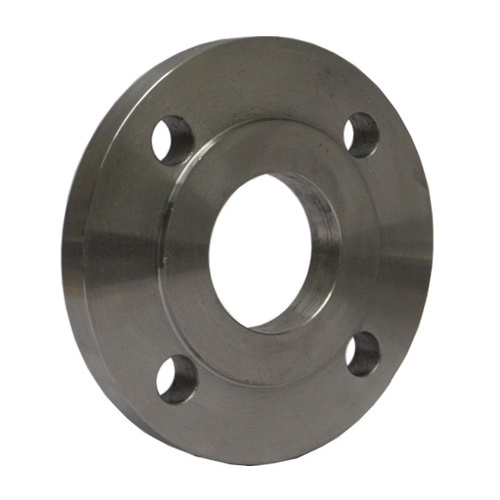

DN40 (1.1/2" NB) PN16 RF SLIP ON PLATE FLANGE CS S235 JR

DN40 (1.1/2" NB) PN16 RF SLIP ON PLATE FLANGE CS S235 JR

Flanges
Technical Specification
Product Code
CS-NB-FLA-RF-SO-P16-40-S235JR
Size (Inch)
1.1/2"
Outside Diameter (mm)
48.30mm
Weight
2.08 KG
https://www.processflow.co.uk/web/image/product.template/11159/image_1920?unique=9f8b7da

£ 12.48 12.48 GBP £ 12.48 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 2.08 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flanges

Suits an outside diameter (OD) of: 48.3mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 110mm
Flange Diameter: 150mm
Flange Thickness: 18mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Plate Flange, Weld on, Mild Steel, Carbon Steel

Product Code: CS-NB-FLA-RF-SO-P16-40-S235JR


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/2"
Outside Diameter (mm) 48.30mm
