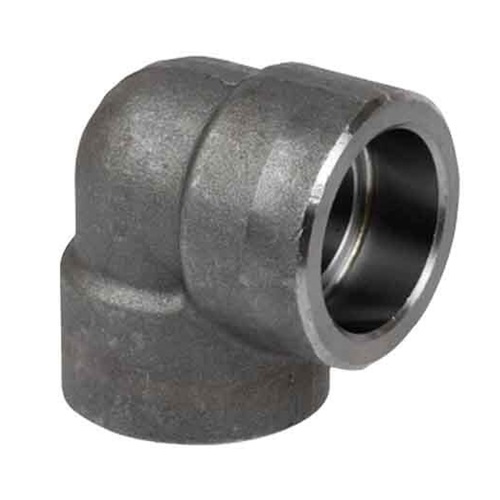

DN40 (1½" NB) SOCKET WELD 3000# FS ELBOW 90° A105N (EUROPEAN ORIGIN)
Technical Specification
Product Code
CS-NB-SW-3K-ELB-90-40-A105N-EU
Outside Diameter (mm)
48.30mm
Weight
0.45 KG
Connection: 1½" Socket Weld (SW) Female
Suits an outside diameter (OD) of: 48.3mm
Material: Forged Steel
Grade: A105NStandards: BS3799, ASME B16.11, MSS SP-97 & MSS SP-833
Angle: 90 Degree
Ends: Socket Weld
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)
Alternative terminology:
Elbow, 90°, 90 Degree, Carbon Steel
