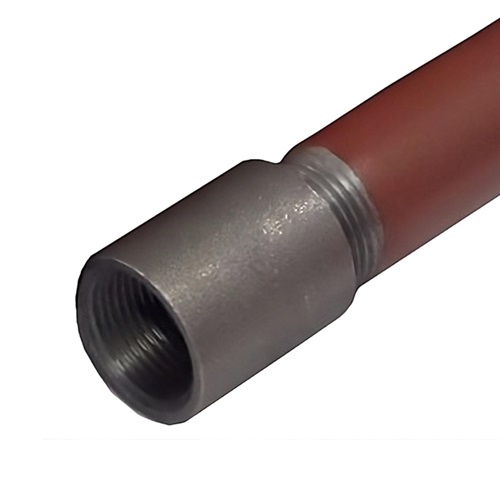

DN100 (4" NB) MEDIUM WT EN10255 SCREWED & SOCKETED RED OXIDE PIPE
Pipes
Technical Specification
Product Code
CS-PIP-100-MED-RED-SCR
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
12.5 KG
Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 4.5mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 12.5kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.
Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.
Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.
