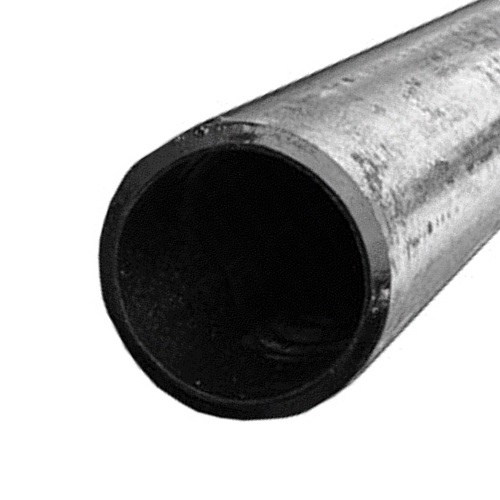

DN125 (5" NB) SCHEDULE 160 A106 GR.B SEAMLESS PIPE (EUROPEAN ORIGIN)
Pipes
Technical Specification
Product Code
CS-PIP-125-S160-BE-EU
Size (Inch)
5"
Outside Diameter (mm)
141.30mm
Weight
49.12 KG
Outside Diameter (OD): 141.3mm
Wall Thickness (WT): 15.88mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 160 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 49.12 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 5" |
| Outside Diameter (mm) | 141.30mm |
| Tags | |
|---|---|
| Tags | |
