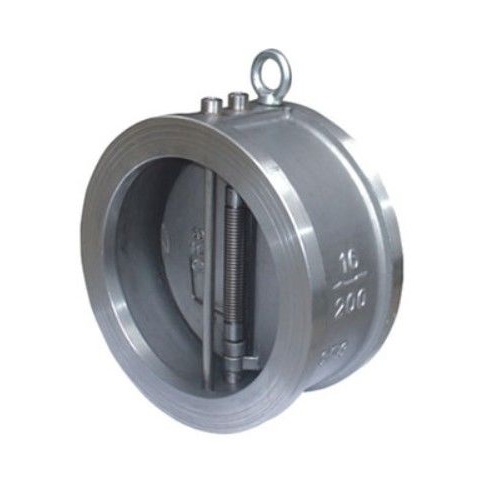

DN50 (2" NB) ASA150 WAFER DUO DISC CHECK VALVE SS 316

Suits an outside diameter (OD) of: 60.3mm
Construction: Spring Assisted Duo Disc Check Valve (NRV / Non-Return Valve)
Body Material: WCB Carbon Steel
Disc Material: Cast Stainless Steel to ASTM A351 Gr. CF8M
To suit flanges: ASA150
Face to Face (Thickness): 60mm
Operation: Automatic
Seat: Integral + AWS A5.9 ER316 Stainless Steel Overlay
Spring: Inconel 600

Max Pressure / Temperature:
38°C at 19.65 bar
200°C at 13.78 bar

Max working pressure: 19.65 bar
