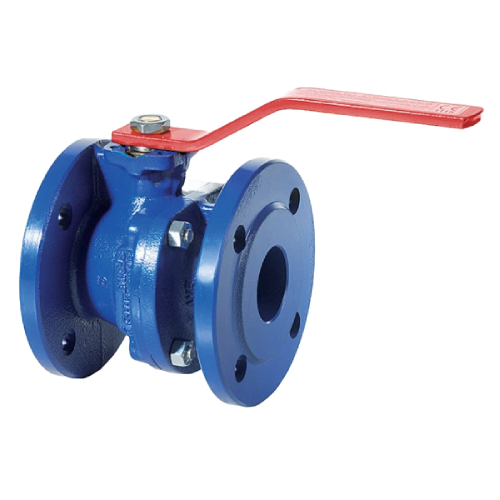

DN150 (6" NB) PN16 2PC FLANGED DUCTILE IRON BALL VALVE DIRECT MOUND WITH RED LEVER

DN150 (6" NB) PN16 2PC FLANGED DUCTILE IRON BALL VALVE DIRECT MOUND WITH RED LEVER

Technical Specification
Product Code
DI-VAL-BAL-P16-150-RED-2PC
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
38.5 KG
https://www.processflow.co.uk/web/image/product.template/19009/image_1920?unique=8676e68

£ 1,308.93 1308.93 GBP £ 1,308.93 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 38.50 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

6" Ductile Iron Ball Valve – Direct Mount – Flanged PN16

Face to face: 210mm

Direct mount with lever


Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 100°C.
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 6"
Outside Diameter (mm) 168.30mm
