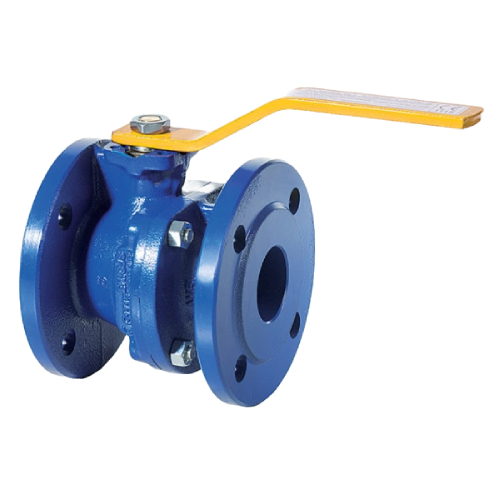

DN40 (1.1/2" NB) PN16 2PC FLANGED DUCTILE IRON BALL VALVE EN331 GAS APPROVED YELLOW LEVER

DN40 (1.1/2" NB) PN16 2PC FLANGED DUCTILE IRON BALL VALVE EN331 GAS APPROVED YELLOW LEVER

Technical Specification
Product Code
DI-VAL-BAL-P16-40-YEL-2PC
Size (Inch)
1.1/2"
Outside Diameter (mm)
48.30mm
Weight
7.5 KG
https://www.processflow.co.uk/web/image/product.template/18991/image_1920?unique=9f8b7da

£ 285.42 285.42 GBP £ 285.42 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 7.50 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

1.1/2" Ductile Iron Ball Valve – EN331 Gas Approved – Flanged PN16

Face to face: 140mm

Suitable for gas service.
EN331 approved design.

Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 70°C.
Product Code: DI-VAL-BAL-P16-40-YEL-2PC


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/2"
Outside Diameter (mm) 48.30mm
