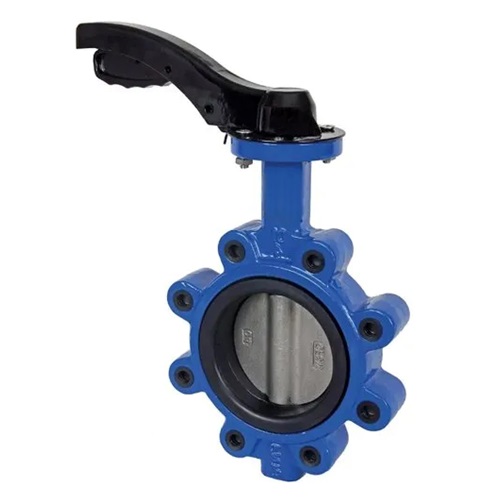

DN32 (1.1/4" NB) PN16 LUGGED & TAPPED LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON

DN32 (1.1/4" NB) PN16 LUGGED & TAPPED LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON

Technical Specification
Product Code
DI-VAL-BFL-P16-LUG-32-EPD-SS
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
2.6 KG
https://www.processflow.co.uk/web/image/product.template/19142/image_1920?unique=91b310a

£ 119.07 119.07 GBP £ 119.07 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 2.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Suits Flange Size: DN32 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.
Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve
Product Code: DI-VAL-BFL-P16-LUG-32-EPD-SS


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/4"
Outside Diameter (mm) 42.20mm
