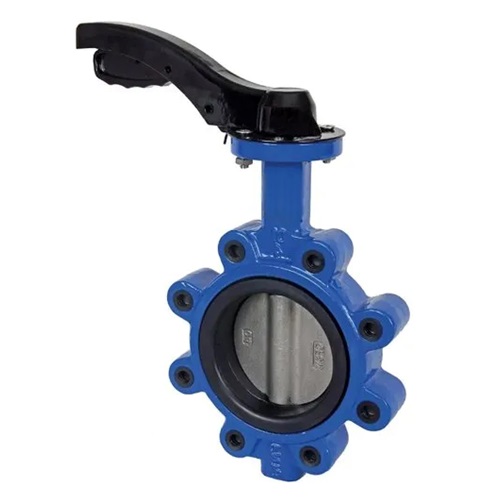

DN80 (3" NB) PN16 LUGGED & TAPPED LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Technical Specification
Product Code
DI-VAL-BFL-P16-LUG-80-EPD-SS
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Weight
5.4 KG
Suits Flange Size: DN80 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.
Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 3" |
| Outside Diameter (mm) | 88.90mm |
