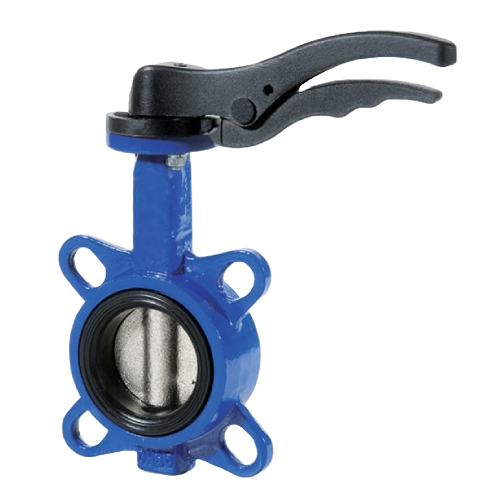

DN150 (6" NB) MULTI FLANGE WAFER PATTERN LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON

DN150 (6" NB) MULTI FLANGE WAFER PATTERN LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON

Technical Specification
Product Code
DI-VAL-BFL-WAF-150-EPD-SS
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
13.0 KG
https://www.processflow.co.uk/web/image/product.template/19559/image_1920?unique=8676e68

£ 267.51 267.51 GBP £ 267.51 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 13.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Suits Flange Size: DN150 (6" NB) (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 6"
Outside Diameter (mm) 168.30mm
