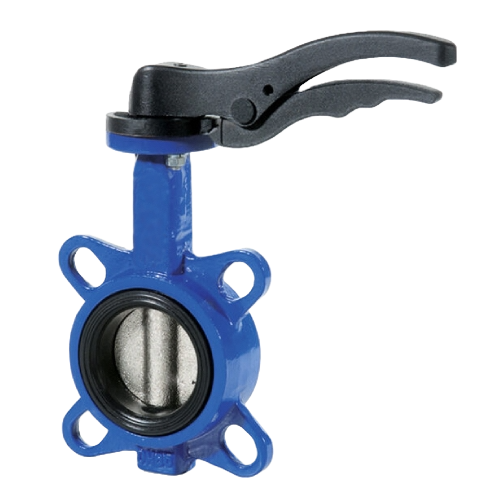

DN200 (8" NB) MULTI FLANGE WAFER PATTERN LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON

DN200 (8" NB) MULTI FLANGE WAFER PATTERN LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON

Technical Specification
Product Code
DI-VAL-BFL-WAF-200-EPD-SS
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
15.0 KG
https://www.processflow.co.uk/web/image/product.template/19103/image_1920?unique=dae48f3

£ 417.24 417.24 GBP £ 417.24 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 15.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Suits Flange Size: DN200 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E
Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 8"
Outside Diameter (mm) 219.10mm
