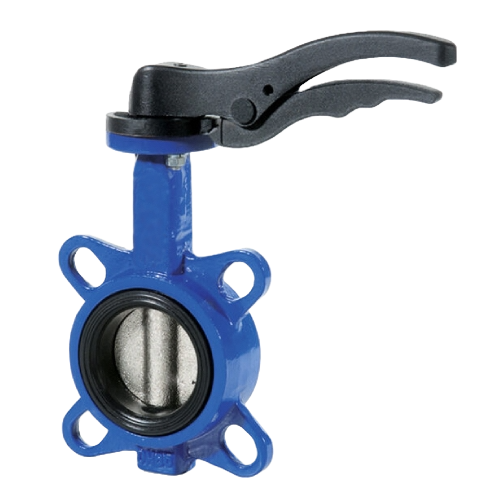

DN32 (1.1/4" NB) MULTI FLANGE WAFER PATTERN LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON

DN32 (1.1/4" NB) MULTI FLANGE WAFER PATTERN LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON

Suits Flange Size: DN32 (1.1/4" NB) (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN6/10/16 & ANSI 150

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve
  • Outside Diameter (mm)
Add to cart Buy now
Price
£ 95.82 £ 95.82 Tax Excluded

£ 0.00 / each
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
Datasheet.pdf

Specifications

Outside Diameter (mm) 42.20mm
