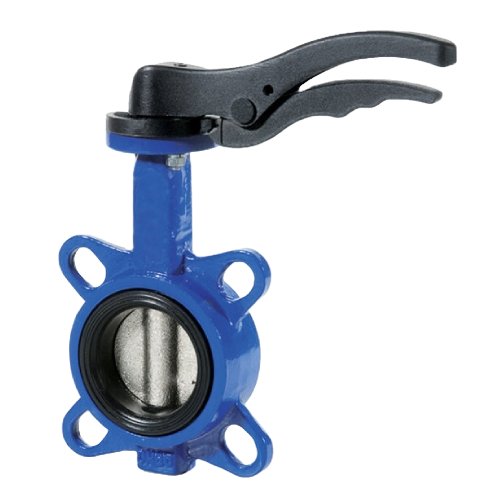

DN50 (2" NB) MULTI FLANGE WAFER PATTERN LEVER OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Technical Specification
Product Code
DI-VAL-BFL-WAF-50-EPD-SS
Size (Inch)
2"
Outside Diameter (mm)
60.30mm
Weight
2.1 KG
Suits Flange Size: DN50 (2" NB) (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E
Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve
Documents
More size options:
If there's something you can't find please get in touch.
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 2" |
| Outside Diameter (mm) | 60.30mm |
