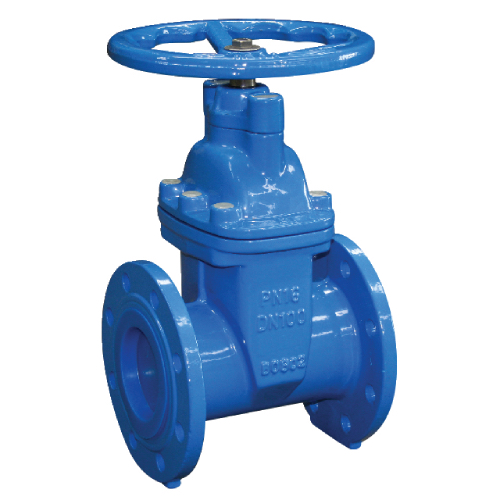

DN300 (12" NB) PN16 FLANGED RESILENT SEATDUCTILE IRON GATE VALVE MANUAL HANDWHEEL

DN300 (12" NB) PN16 FLANGED RESILENT SEATDUCTILE IRON GATE VALVE MANUAL HANDWHEEL

Gate Valves
Technical Specification
Product Code
DI-VAL-GAT-P16-300-HW-RES
Size (Inch)
12"
Outside Diameter (mm)
323.90mm
Weight
159.0 KG
https://www.processflow.co.uk/web/image/product.template/21718/image_1920?unique=91b310a

£ 2,811.06 2811.06 GBP £ 2,811.06 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 159.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Gate Valves
Flanged to suit: 12" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 178mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16
Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 12"
Outside Diameter (mm) 323.90mm
