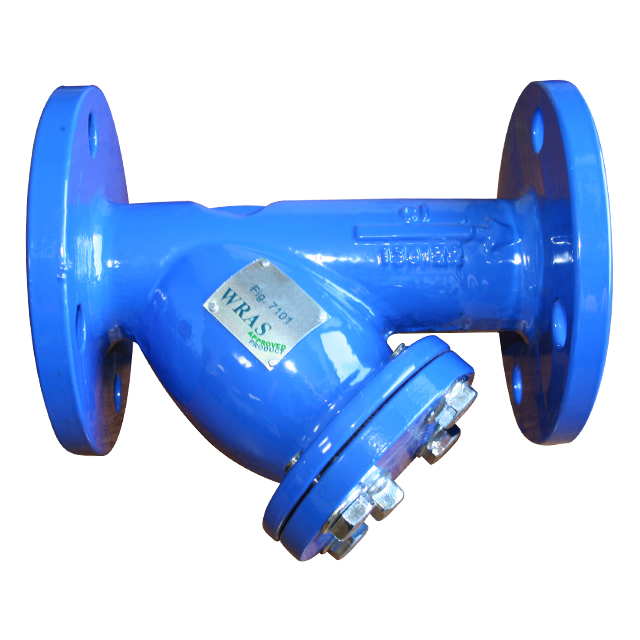

DN100 (4" NB) FLANGED DUCTILE IRON WRAS APPROVE Y TYPE STRAINER

DN100 (4" NB) FLANGED DUCTILE IRON WRAS APPROVE Y TYPE STRAINER

Technical Specification
Product Code
DI-VAL-STR-P16-100-WRAS-SS
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
27.0 KG
https://www.processflow.co.uk/web/image/product.template/19535/image_1920?unique=ca03c16

£ 384.66 384.66 GBP £ 384.66 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 27.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Suits Flange Size: DN100 PN16
Valve Type: Y Type Strainer
Body Material: EN GJS 450 Epoxy Coated Ductile Iron
Gasket Material: EPDM
Screen / Mesh Material: 304 Stainless Steel
Operation: Automatic
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Approval: WRAS Approved

Face to Face: 352mm Overall Length
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 4"
Outside Diameter (mm) 114.30mm
