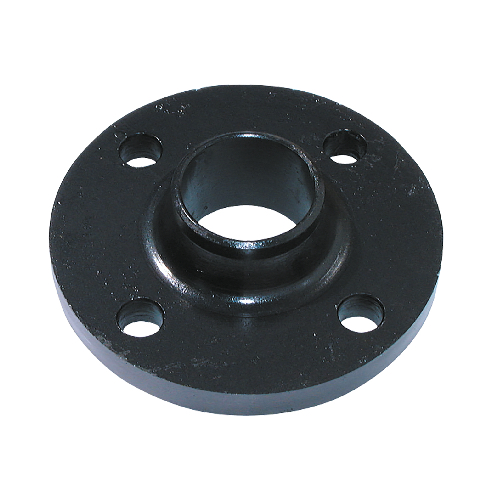

DN25 (1" NB) SCHEDULE 40 / STD WT PN10/16/25/40 WELD NECK FLANGE CS A105N

DN25 (1" NB) SCHEDULE 40 / STD WT PN10/16/25/40 WELD NECK FLANGE CS A105N

Outside diameter (O): 115.00mm
Flange thickness (C): 18mm
Pitch circle diameter (K): 85.00mm
Hub base diameter (Y): 46.00mm
Raised face height (RF): 3.0mm
Raised face diameter (R): 68.00mm
Number of bolt holes: 4
Material: A105N
Rating: PN40
Type: Weld Neck Flange (Type 11)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, PN40, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range
  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Schedule
  • Pressure Rating
Add to cart Buy now
Price
£ 10.80 £ 10.80 Tax Excluded

£ 0.00 / each
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Specifications

Material Carbon Steel
Grade A105N
Outside Diameter (mm) 33.40mm
Nominal Size DN25
Schedule Schedule 40
Pressure Rating PN10 / PN16 / PN25 / PN40
