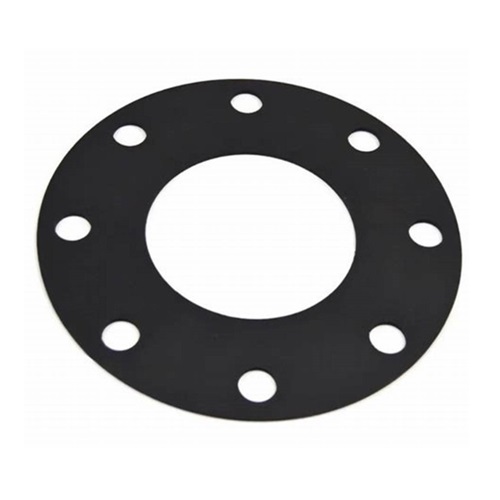

DN100 (4" NB) PN6 FULL FACE GASKET 3mm EPDM
Technical Specification
Product Code
GSK-NB-P6-EPD-FF-100X3.0
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
0.02 KG
Suits an outside diameter (OD) of: 114.3mm, 104mm or 101.6mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Bolt Holes: 4 off to suit M16 Bolts
PCD: 170mm
Flange Diameter: 210mm
Gasket Thickness: 3mm
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 4" |
| Outside Diameter (mm) | 114.30mm |
