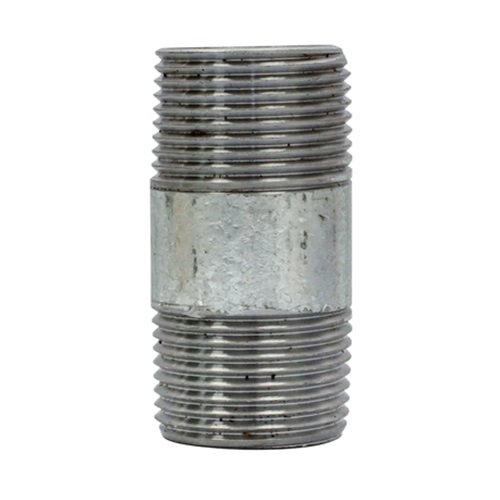

DN40 (1.1/2" NB) BSP GALVANISED HEAVY W/S BARREL NIPPLE (120mm LONG)
Fittings
Technical Specification
Product Code
HW-NB-BSP-BNI-40-120-GAL
Size (Inch)
1.1/2"
Outside Diameter (mm)
48.30mm
Threaded both sides: 1.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 48.3mm
Overall Length: 120mm
Material: Wrought Iron
Finish: Galvanised
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 1.1/2" |
| Outside Diameter (mm) | 48.30mm |
