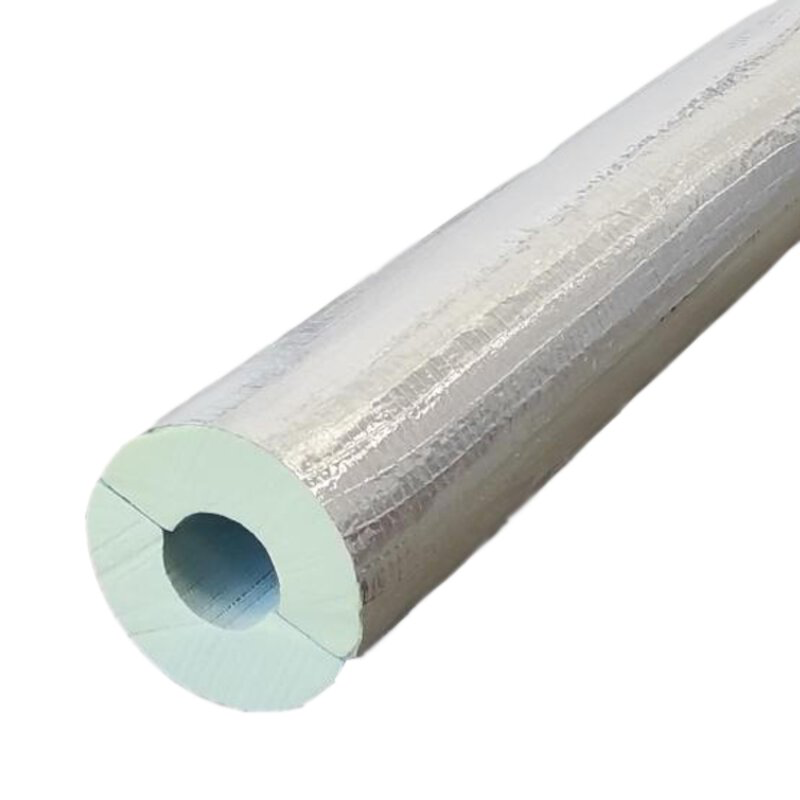

306mm ID X 50mm THICK PHENOLIC INSULATION PIPE SECTION

306mm ID X 50mm THICK PHENOLIC INSULATION PIPE SECTION

Technical Specification
Product Code
INS-ISO-PHE-304-50
Outside Diameter (mm)
306.00mm
Weight
0.5 KG
https://www.processflow.co.uk/web/image/product.template/22664/image_1920?unique=cbb98dd

£ 191.31 191.31 GBP £ 191.31 Tax Excluded

Not Available For Sale

(£ 191.31 / meter)
Product details
Weight 0.50 KG per meter
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Suits an outside diameter of: 304mm
Insulation thickness: 50mm
Nominal Density: 40 kg/m3
Colour: Green
Thermal Conductivity: EN12667  0.025 max W/m·K at 10°C
Temperature Range: -50°C to +120°C
Compressive Strength: EN826
Closed Cell Content: EN4590 > 90%
Dimensional stability: EN1604 < 1.5%
Water absorption: EN1609 < 1.25kg/m2
KEY TECHNICAL FEATURES
EN 15804:2012+A1:2013
Environmental Product
Declaration (EPD) - BRE Global
Verified
BS EN14314 Phenolic foam
standard compliant
Fire and Smoke safe -
BL -s1, d0 tested to EN 13501-1
Thermally efficient - max aged
K value of 0.025 W/m·k tested to
EN12667
Environmentally safe - CFC &
HCFC free, GWP less than 5 Zero Ozone Depletion Potential
Bore coated in line with major engineering specifications
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Outside Diameter (mm) 306.00mm
