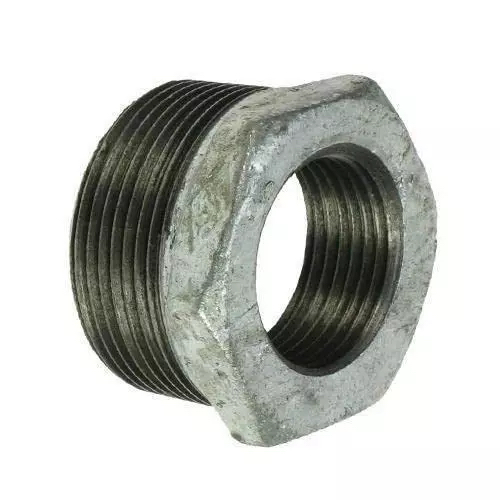

DN10 X 6 (3/8" X 1/8" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH

DN10 X 6 (3/8" X 1/8" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH

Technical Specification
Product Code
MI-NB-BSP-BUS-10-6-GAL
Size (Inch)
3/8"
Size (Inch)
1/8"
Outside Diameter (mm)
17.10mm
https://www.processflow.co.uk/web/image/product.template/12692/image_1920?unique=ca03c16

£ 2.16 2.16 GBP £ 2.16 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Available to order Sign up for trade prices
  • Size (Inch)
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Side 1 threaded: 3/8" BSPP Female
Side 1 suits an outside diameter (OD) of: 17.15mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 3/8", 1/8"
Outside Diameter (mm) 17.10mm
