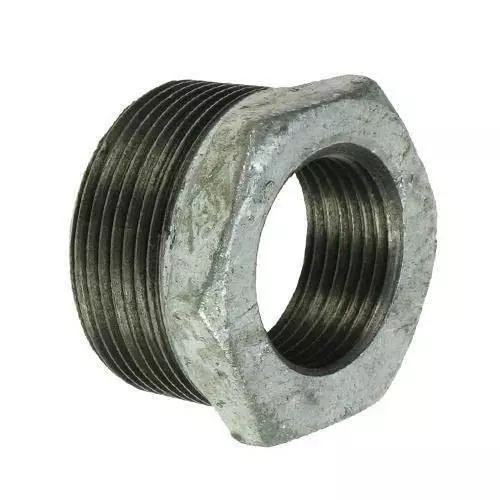

DN100 X 50 (4" X 2" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH
Fittings
Technical Specification
Product Code
MI-NB-BSP-BUS-100-50-GAL
Size (Inch)
4"
Size (Inch)
2"
Outside Diameter (mm)
114.30mm
Side 1 threaded: 4" BSPP Female
Suits 1 suits an outside diameter (OD) of: 114.3mm
Side 2 threaded: 2" BSPP Female
Side 2 suits an outside diameter (OD) of: 60.3mm
Material: Malleable Iron
Finish: Galvanised
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 4", 2" |
| Outside Diameter (mm) | 114.30mm |
