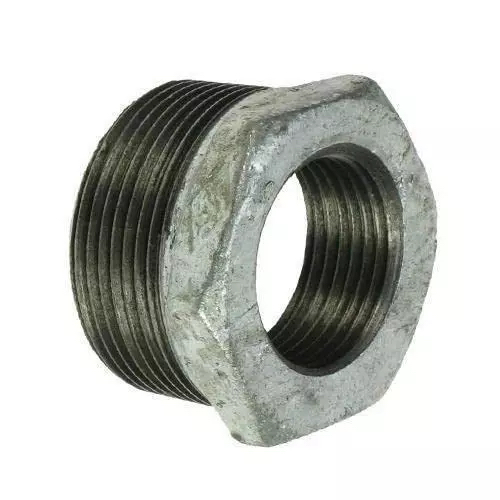

DN25 X 8 (1" X 1/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH

DN25 X 8 (1" X 1/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING BUSH

Technical Specification
Product Code
MI-NB-BSP-BUS-25-8-GAL
Size (Inch)
1"
Size (Inch)
1/4"
Outside Diameter (mm)
33.40mm
https://www.processflow.co.uk/web/image/product.template/12766/image_1920?unique=91b310a

£ 3.00 3.0 GBP £ 3.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Available to order Sign up for trade prices
  • Size (Inch)
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.
Product Code: MI-NB-BSP-BUS-25-8-GAL


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1", 1/4"
Outside Diameter (mm) 33.40mm
