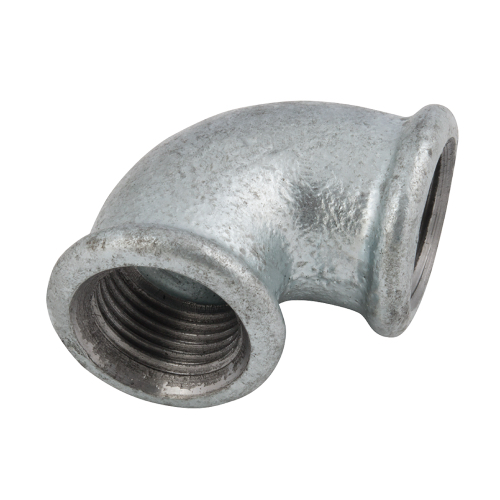

DN32 (1.1/4" NB) BSP GALVANISED MALLEABLE IRON FXF ELBOW 90°

DN32 (1.1/4" NB) BSP GALVANISED MALLEABLE IRON FXF ELBOW 90°

Technical Specification
Product Code
MI-NB-BSP-ELB-FF-90-32-GAL
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
https://www.processflow.co.uk/web/image/product.template/12782/image_1920?unique=92bc388

£ 5.22 5.22 GBP £ 5.22 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Both sides threaded: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/4"
Outside Diameter (mm) 42.20mm
