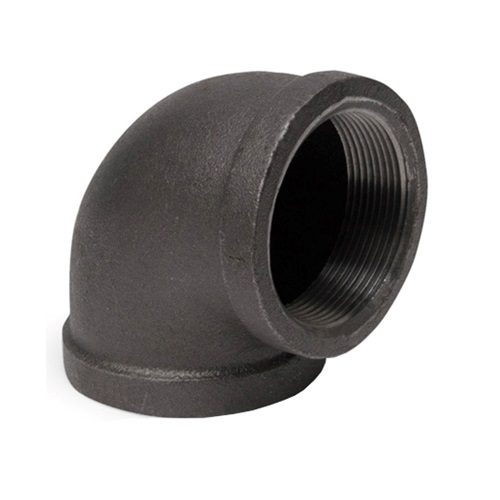

DN80 (3" NB) BSP BLACK MALLEABLE IRON FXF ELBOW 90°
Fittings
Technical Specification
Product Code
MI-NB-BSP-ELB-FF-90-80-BLK
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Weight
2.2 KG
Both sides threaded: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.
