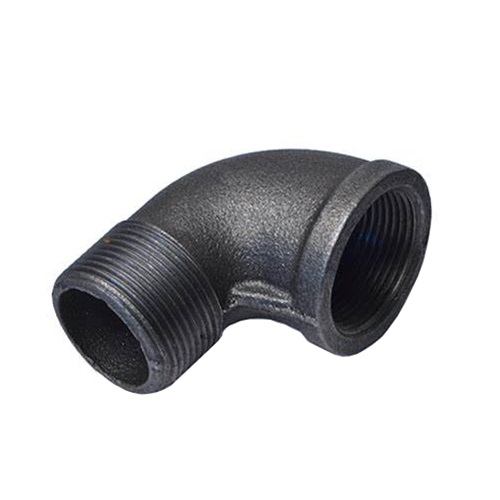

DN100 (4" NB) BSP BLACK MALLEABLE IRON MXF STREET ELBOW 90°
Fittings
Technical Specification
Product Code
MI-NB-BSP-ELB-MF-90-100-BLK
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
3.4 KG
Side One Thread: 4" BSPP Female
Side Two Thread: 4" BSPT Male
Both Sides Suit an Outside Diameter (OD) of: 114.3mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Threaded, MXF, Male x Female Screwed, Figure 90 MF, Fittings.
