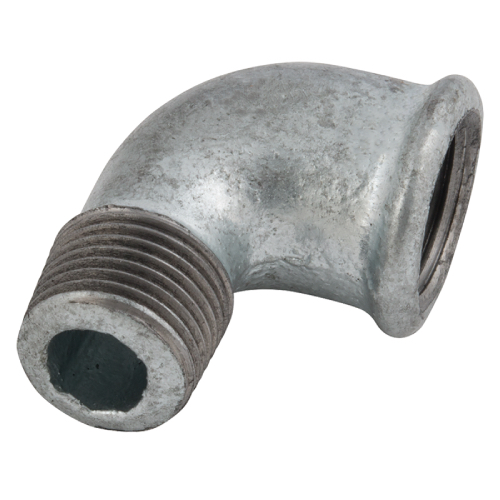

DN80 (3" NB) BSP GALVANISED MALLEABLE IRON MXF STREET ELBOW 90°
Technical Specification
Product Code
MI-NB-BSP-ELB-MF-90-80-GAL
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Side One Thread: 3" BSPP Female
Side Two Thread: 3" BSPT Male
Both Sides Suit an Outside Diameter (OD) of: 88.9mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Threaded, MXF, Male x Female Screwed, Figure 90 MF, Fittings.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 3" |
| Outside Diameter (mm) | 88.90mm |
