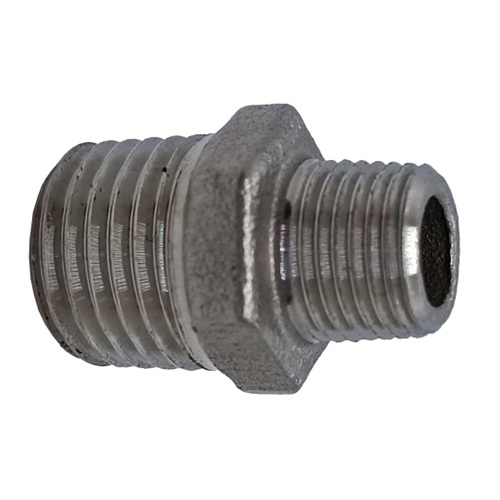

DN32 X 15 (1.1/4" X 1/2" NB) BSP BLACK MALLEABLE IRON REDUCING HEX NIPPLE
Fittings
Technical Specification
Product Code
MI-NB-BSP-HNIR-32-15-BLK
Size (Inch)
1.1/4"
Size (Inch)
1/2"
Outside Diameter (mm)
42.20mm
Weight
0.22 KG
Side 1 Thread: 1.1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 42.4mm
Side 2 Thread: 1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.
