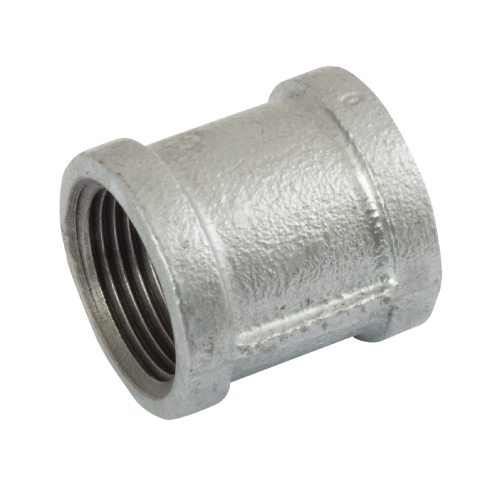

DN15 (1/2" NB) BSP GALVANISED MALLEABLE IRON SOCKET
Fittings
Technical Specification
Product Code
MI-NB-BSP-SOC-15-GAL
Size (Inch)
1/2"
Outside Diameter (mm)
21.30mm
Weight
0.07 KG
Both sides threaded: 1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Galvanised
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Socket, Coupling, Connector, Straight, Threaded, Screwed, Figure 220, Fittings.
